PC Hollow sheet line
Product Description
Production process:

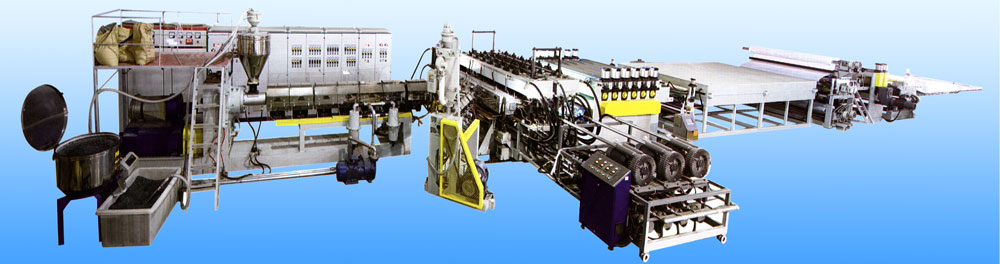

Single screw extruder —T Die—Vacuum calibrator —1st Haul-off—-Owen—- 2nd Haul-off—-Cutter—Stacker

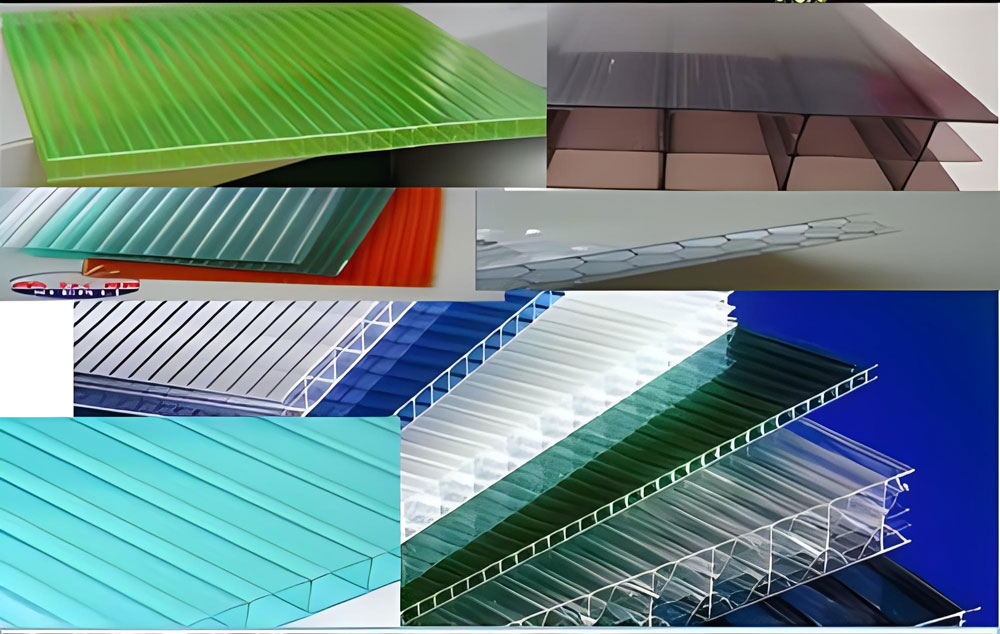

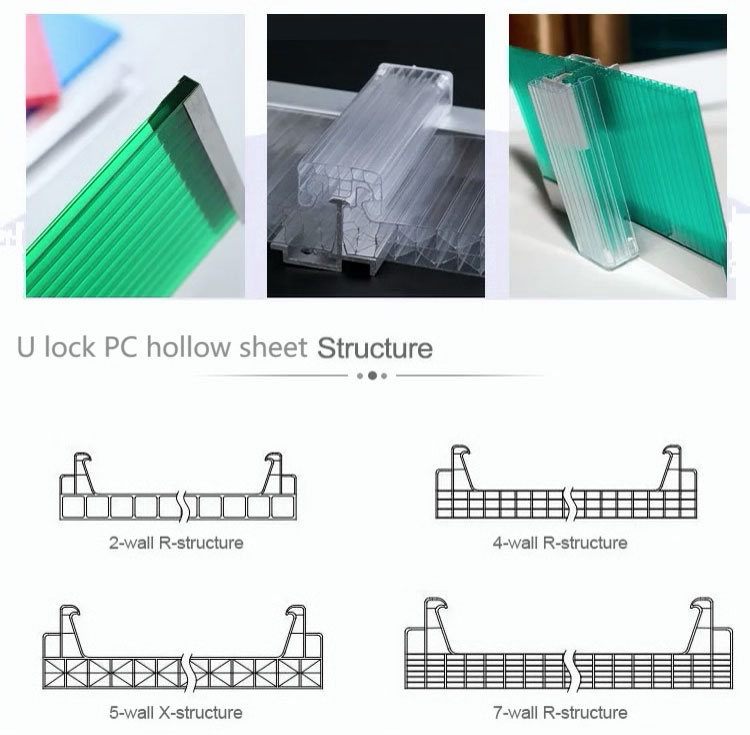

Application of PC Hollow sheet:

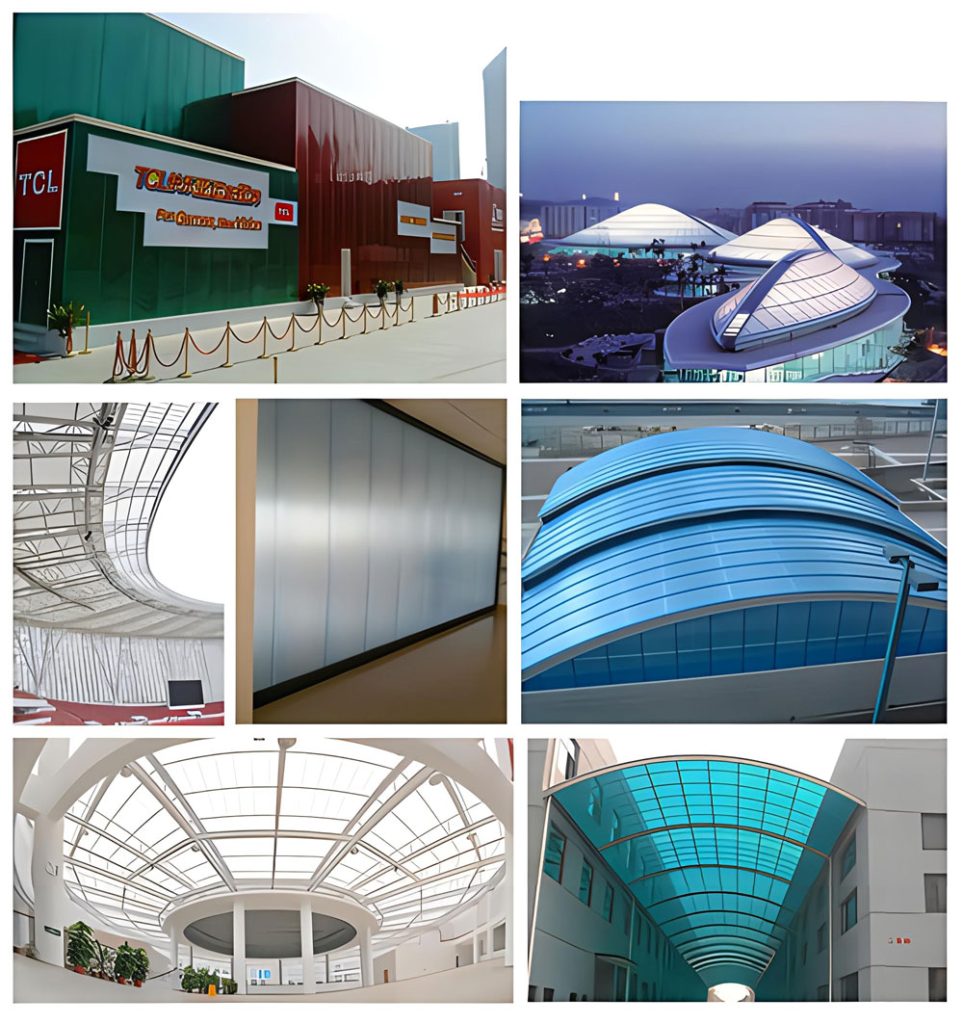

- daylighting of office buildings, halls, shopping malls, stadium and public facilities
- The awning of a station, car park, Bower, Lounge Corridor
- Noise barriers on expressways and urban viaducts

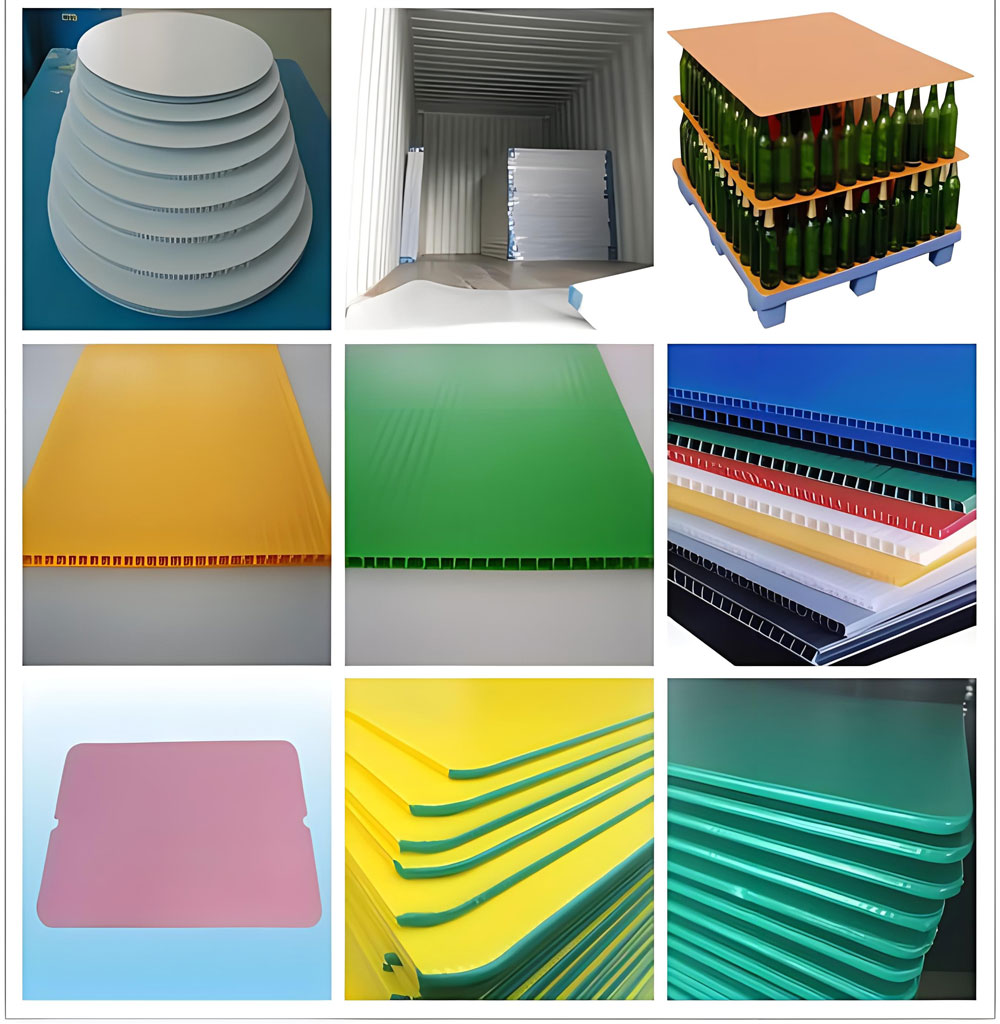

Application of PP Hollow sheet:
Packaging industry, Bottling & Beverage industry, Printing & Sign industry, Logistics industry, Horticulture, etc.
Performance and advantages:
PC/PP hollow sheet extrusion line has the advantages of high output, low energy consumption, simple process, convenient operation and maintenance of equipment, and its unique screw combination structure effectively reduces the viscosity reduction of raw material, improves the cooling efficiency and improves the productivity and sheet quality
Main Technical Specification
| Item | PC Hollow sheet | PP Hollow sheet | ||
|---|---|---|---|---|
|
Main Extruder Dia |
120mm |
130mm |
105 |
120mm |
|
Co-Extruder Dia |
45mm |
45mm |
- |
- |
|
Main Extruder L/D |
35：1 |
38：1 |
35：1 |
35：1 |
|
Co-Extruder L/D |
30：1 |
30：1 |
- |
- |
|
Main Extruder motor |
185kw |
250kw |
110kw |
160kw |
|
Co-Extruder motor |
18.5kw |
18.5kw |
- |
- |
|
Thickness range |
3-30mm |
3-30mm |
2-6mm |
2-6mm |
|
Width |
2100mm |
2100mm |
900-1200m |
1000-1600mm |
|
Output |
300~400kg/ |
350~500kg/h |
150~250kg/h |
250~350kg/h |
Note: Information listed above are for reference only, the production line can be designed by customer’s requirements.
